Shimano 12v type free wheel body for DT Swiss hubs (Micro Spline)

ID: 1724-0

Ref:

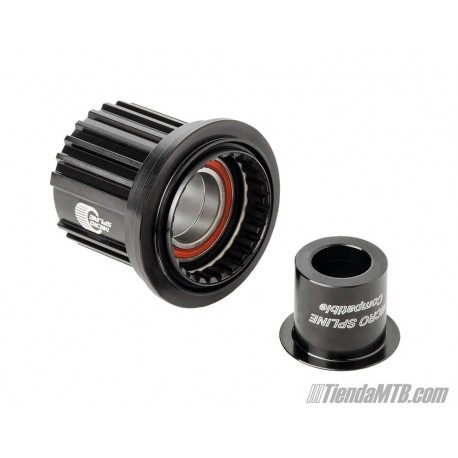

A kit that include Shimano Micro Spline type free wheel body and end cap right for DTSwiss hubs. You will need this kit to use the new 12 speed Shimano XTR, XT and SLX cassettes in your wheel with DT Swiss hub. The cap change in each model. Available for Ratchet and Pawl type hubs.

Details

Facebook Whatsapp Email

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

We ship worldwide.
FREE shiping to Spain Mainland in orders above 100€.
Cheap shipping to some EU countries in orders above 100€.
Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
Secure card payment through a payment gateway.

More info

A kit that include Shimano Micro Spline type free wheel body and end cap right for DTSwiss hubs. You will need this kit to use the new Shimano XTR, XT and SLX 12 speed cassettes in your wheel with DT Swiss hub.

References:

Model A: HWYABL00S2562S W2160017000

Model B: HWYABM00S4934S W2160017110

Model C: --

Model D: --

Model E: --

Model F: --

Model G: --

Model H: --

WHEELS:

	5/135 mm	12/142 mm	12/148 mm
XRC 1200 SPLINE	not available	Model A	Model A
XMC 1200 SPLINE	not available	Model A	Model A
XR 1501 SPLINE ONE	not available	Model A	Model A
XM 1501 SPLINE ONE	not available	Model A	Model A
EX 1501 SPLINE ONE	not available	Model A	Model A
X 1700 SPLINE TWO	not available	Model A	Model A
M 1700 SPLINE TWO	not available	Model A	Model A
E 1700 SPLINE TWO	not available	Model A	Model A
FR 1950 CLASSIC except 150mm	not available	Model A	Model A
FR 1950 CLASSIC 150 mm only	not available	not available	not available

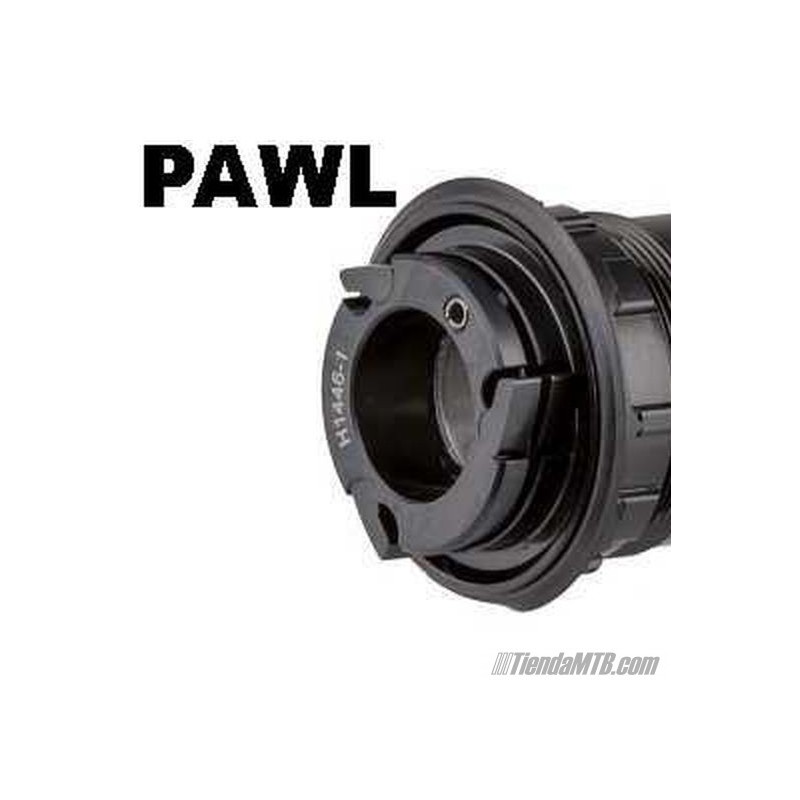

Wheels with PAWL System (before 2021):

	5/135 mm	12/142 mm	12/148 mm
X 1900 SPLINE	not available	Model B	Model B
M 1900 SPLINE	not available	Model B	Model B
E 1900 SPLINE	not available	Model B	Model B

After 2021 the 1900 models use Ratchet system, so is best disassembly to be sure.

Hubs with Ratchet System:

	5/135 mm	12/142 mm
180 Classic Center Lock	not available	Model A
240s straightpull Center Lock	not available	Model A
240s straightpull IS (6-bolt)	not available	Model A
240s Classic Center Lock	not available	Model A
240s Classic db IS (6-bolt)	not available	Model A
350 straightpull Center Lock	not available	Model A
350 straightpull IS (6-bolt)	not available	Model A
350 Classic Center Lock	not available	Model A
350 Classic db IS (6-bolt)	not available	Model A
