XD free wheel body for DT Swiss hubs

ID: 1564-0

Ref:

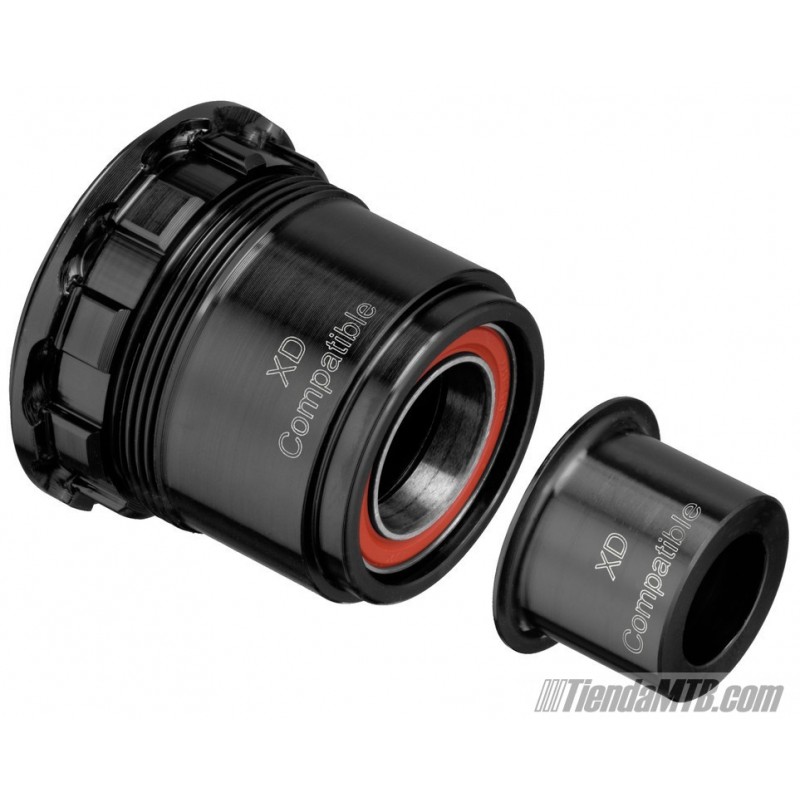

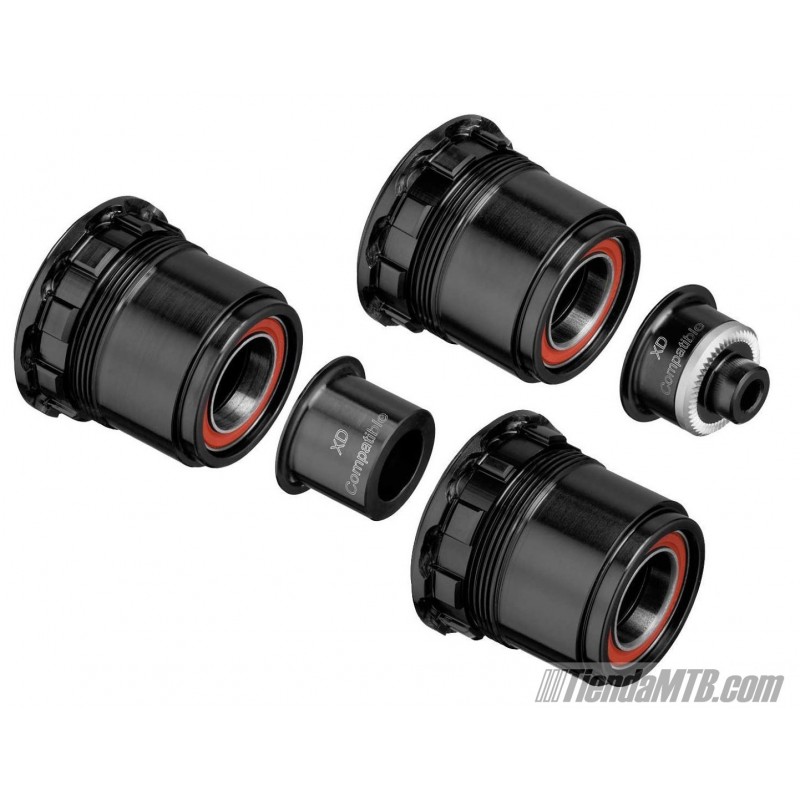

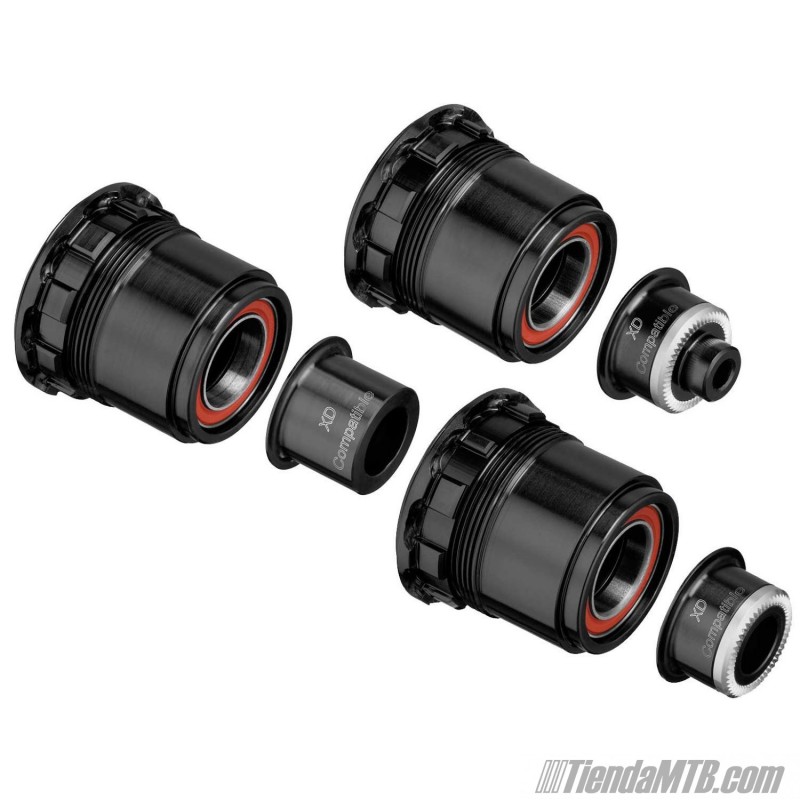

Kits that include XD free wheel body and end cap right for DTSwiss hubs. You will need this kit to use SRAM XD 11 or 12 speed (Eagle) cassettes in your wheel with DT Swiss hub.

ATENTION: Please, select Format and Model looking the hub model list below.

Details

Facebook Whatsapp Email

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

We ship worldwide.
FREE shiping to Spain Mainland in orders above 100€.
Cheap shipping to some EU countries in orders above 100€.
Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
Secure card payment through a payment gateway.

More info

Kits that include XD free wheel body and end cap right for DTSwiss hubs. You will need this kit to use SRAM XD 11 or 12 speed (Eagle) cassettes in your wheel with DT Swiss hub.

References:

Model A: HWYAAX00S3188S

Model B: HWYAAM00S3909S

Model C: HWYAAX00S3382S

Model D: HWYAAX00S3218S

Model E: HWYAAX00S3115S

Model F: HWYAAM00S3908S

Model G: HWYAAM00S3907S

Model H: HWYAAM00S3906S

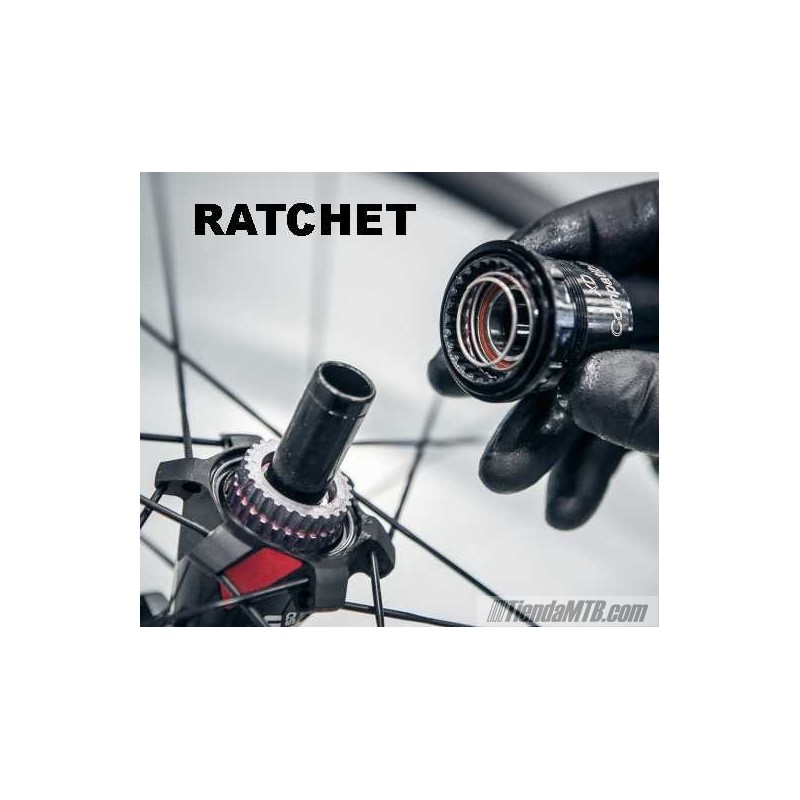

Wheels with Ratchet System:

	5x135 mm (QR)	12x142 mm 12x148 mm
XRC 1200 SPLINE	Model E	Model A
XMC 1200 SPLINE	Model E	Model A
XR 1501 SPLINE ONE	Model E	Model A
XM 1501 SPLINE ONE	Model E	Model A
EX 1501 SPLINE ONE	Model E	Model A
X 1700 SPLINE TWO	Model E	Model A
M 1700 SPLINE TWO	Model E	Model A
E 1700 SPLINE TWO	Model E	Model A
FR 1950 CLASSIC (except 150 mm)	Model E	Model A

WHEELS FR 1950 and Big Ride:

	12x150 mm	12x190 mm	12x197 mm
FR 1950 CLASSIC (150 mm only)	Model C	-	-
BR 2250 CLASSIC	-	Model C	Model A

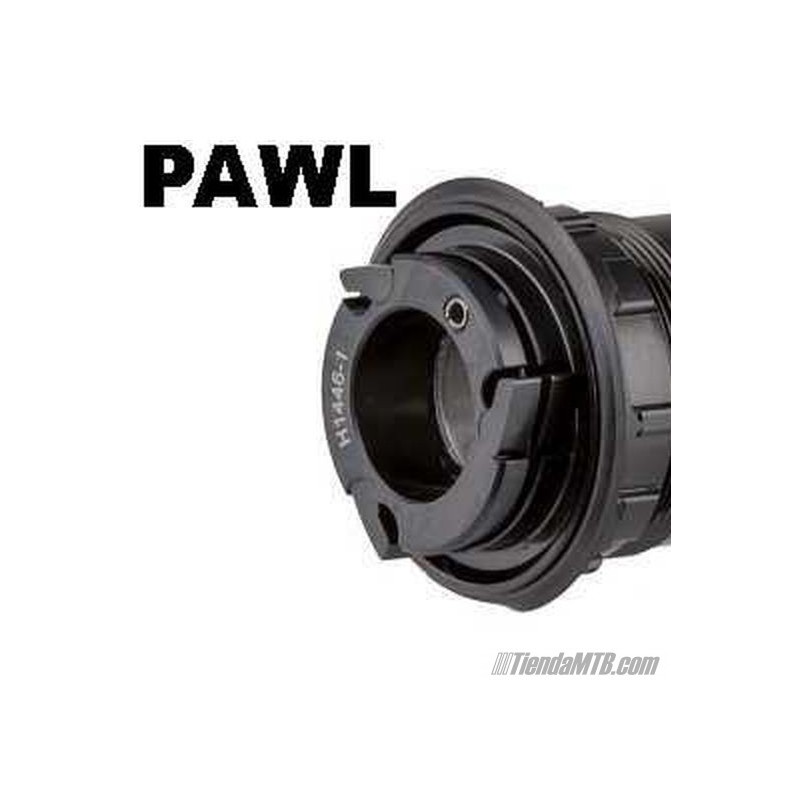

Wheels with PAWL System (before 2021):

	5x135 mm (QR)	12x142 mm 12x148 mm
X 1900 SPLINE	Model H	Model B
M 1900 SPLINE	Model H	Model B
E 1900 SPLINE	Model H	Model B

After 2021 the 1900 models use Ratchet system, so is best disassembly to be sure.

Hubs with Ratchet System:

	5x135 mm (QR)	12x142 mm
180 Classic Center Lock	Model E	Model A
190 straightpull	Model E	Model A
240s straightpull Center Lock	Model E	Model A
240s straightpull IS (6-bolt)	Model E	Model A
240s Classic Center Lock	Model E	Model A
240s Classic db IS (6-bolt)	Model E	Model A
350 straightpull Center Lock	Model E	Model A
350 straightpull IS (6-bolt)	Model E	Model A
350 Classic Center Lock	Model E	Model A

HUBS:

	12x150 mm	12x177 mm 12x197 mm	12x190 mm
240s straightpull IS (6-bolt)	Model C	-	-
240s Classic db IS (6-bolt)	Model C	-	-
350 Classic Center Lock Big Ride	-	Model A	Model C
350 Classic db IS (6-bolt)	Model C	-	-
