Shimano type free wheel body for DT Swiss hubs

ID: 1565-0

Ref:

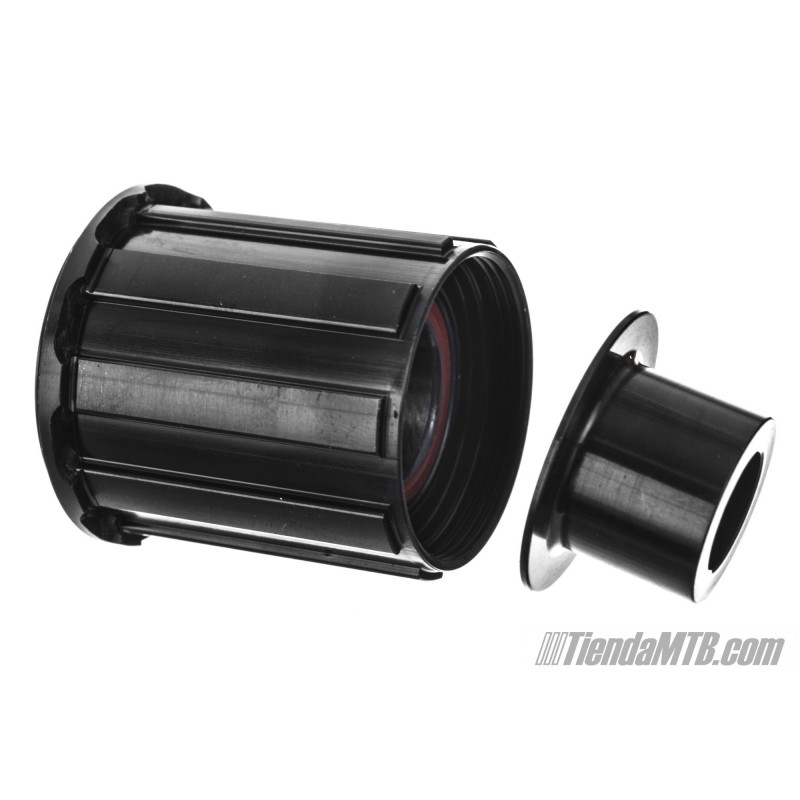

Kits that include Shimano type free wheel body and end cap right for DTSwiss hubs. You will need this kit to use Shimano type 9, 10, 11 speed MTB cassettes in your wheel with DT Swiss hub. The cap change in each model.

ATENTION: Please, select Model and format looking the hub model list below.

Details

Facebook Whatsapp Email

Remove this product from my favorite's list.
Add this product to my list of favorites.
Print

We ship worldwide.
FREE shiping to Spain Mainland in orders above 100€.
Cheap shipping to some EU countries in orders above 100€.
Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
Secure card payment through a payment gateway.

More info

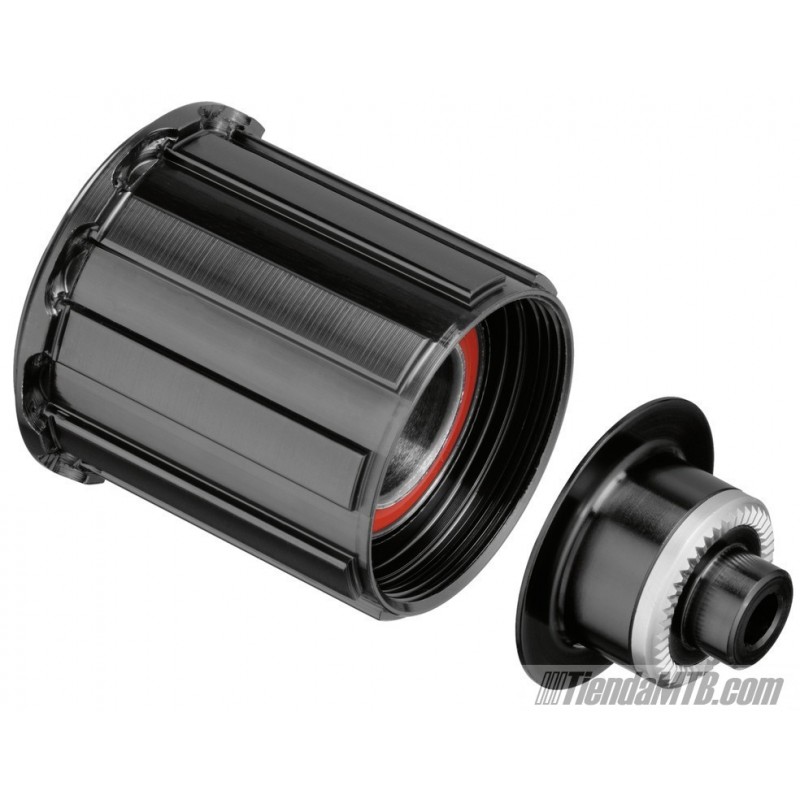

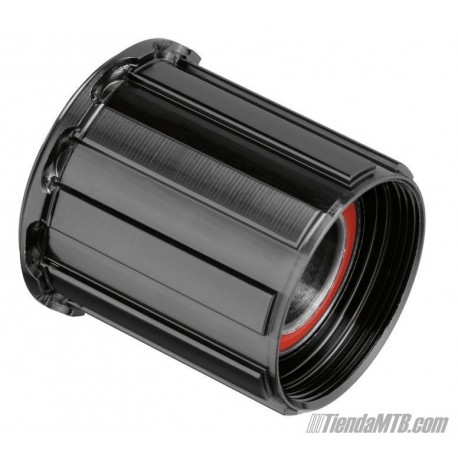

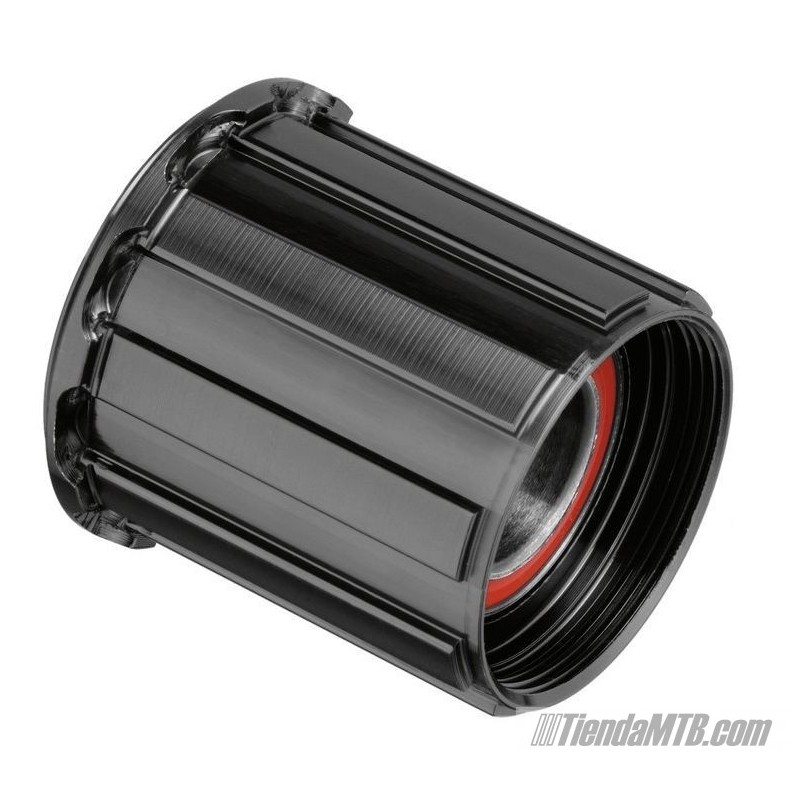

Kits that include Shimano type free wheel body and end cap right for DTSwiss hubs. You will need this kit to use Shimano type 9, 10 or 11 speed MTB cassettes, or 9 or 10 speed road cassetes in your wheel with DT Swiss hub.

References:

Model A: HWYABX00S3745S

Model B: HWYABM00S6150S

Model C: HWYABX00S3746S

Model D: HWYABX00S0897S

Model E: HWYABX00S1239S

Model F: HWYABM00S6149S

Model G: HWYABM00S6148S

Model H: HWYABM00S6147S

WHEELS:

	5/135 mm	12/142 mm	12/148 mm
XRC 1200 SPLINE	Model E	Model A	Model A
XMC 1200 SPLINE	Model E	Model A	Model A
XR 1501 SPLINE ONE	Model E	Model A	Model A
XM 1501 SPLINE ONE	Model E	Model A	Model A
EX 1501 SPLINE ONE	Model E	Model A	Model A
X 1700 SPLINE TWO	Model E	Model A	Model A
M 1700 SPLINE TWO	Model E	Model A	Model A
E 1700 SPLINE TWO	Model E	Model A	Model A
FR 1950 CLASSIC except 150mm	Model E	Model A	Model A
FR 1950 CLASSIC 150 mm only	not available	not available	not available

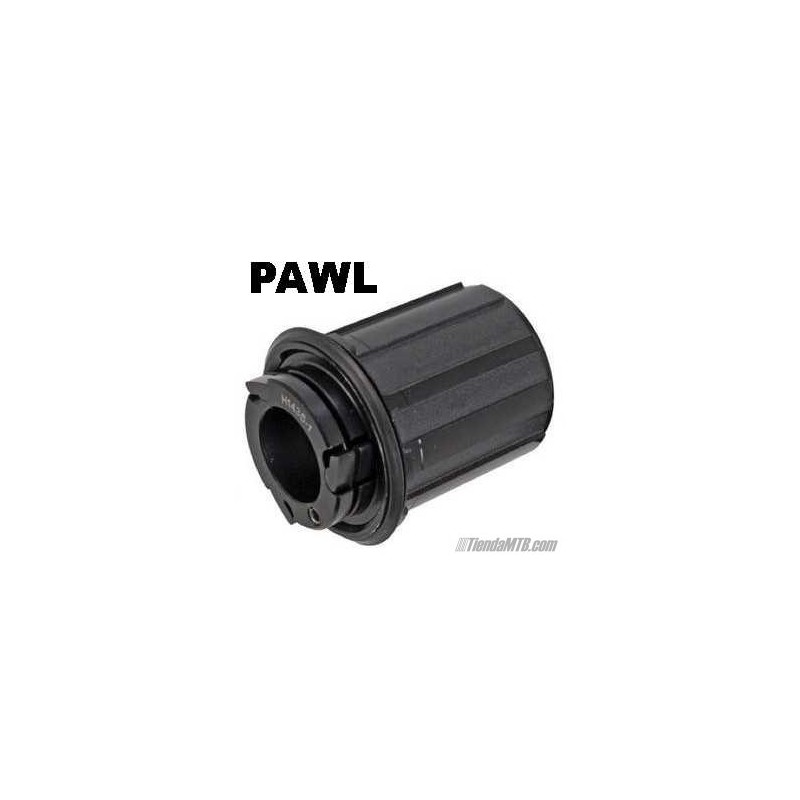

Wheels with PAWL System (before 2021):

	5/135 mm	12/142 mm	12/148 mm
X 1900 SPLINE	Model H	Model B	Model B
M 1900 SPLINE	Model H	Model B	Model B
E 1900 SPLINE	Model H	Model B	Model B

After 2021 the 1900 models use Ratchet system, so is best disassembly to be sure.

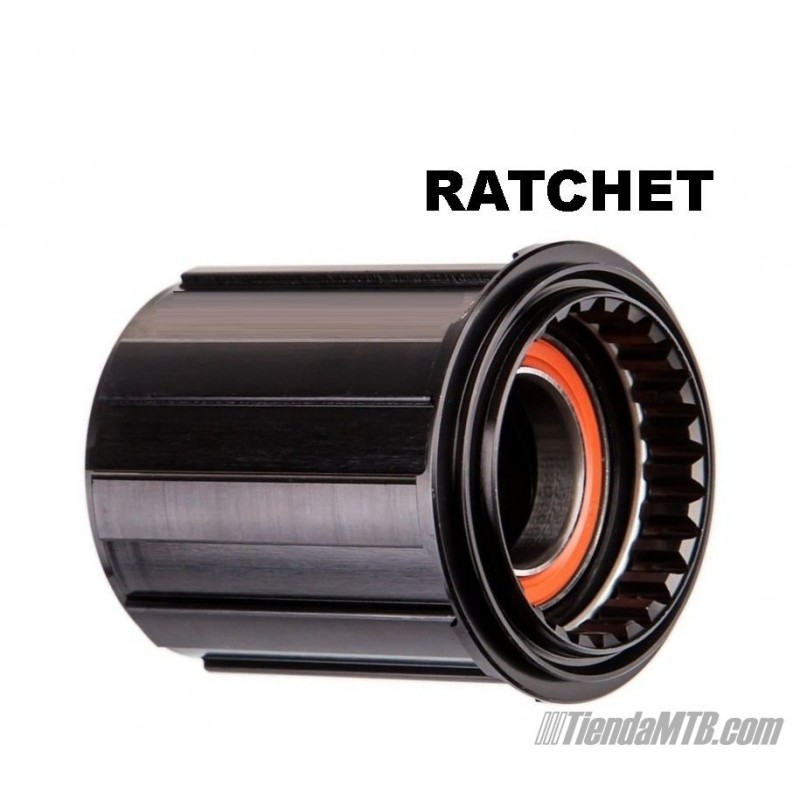

Hubs with Ratchet System:

	5/135 mm	12/142 mm
180 Classic Center Lock	Model E	Model A
240s straightpull Center Lock	Model E	Model A
240s straightpull IS (6-bolt)	Model E	Model A
240s Classic Center Lock	Model E	Model A
240s Classic db IS (6-bolt)	Model E	Model A
350 straightpull Center Lock	Model E	Model A
350 straightpull IS (6-bolt)	Model E	Model A
350 Classic Center Lock	Model E	Model A
350 Classic db IS (6-bolt)	Model E	Model A
