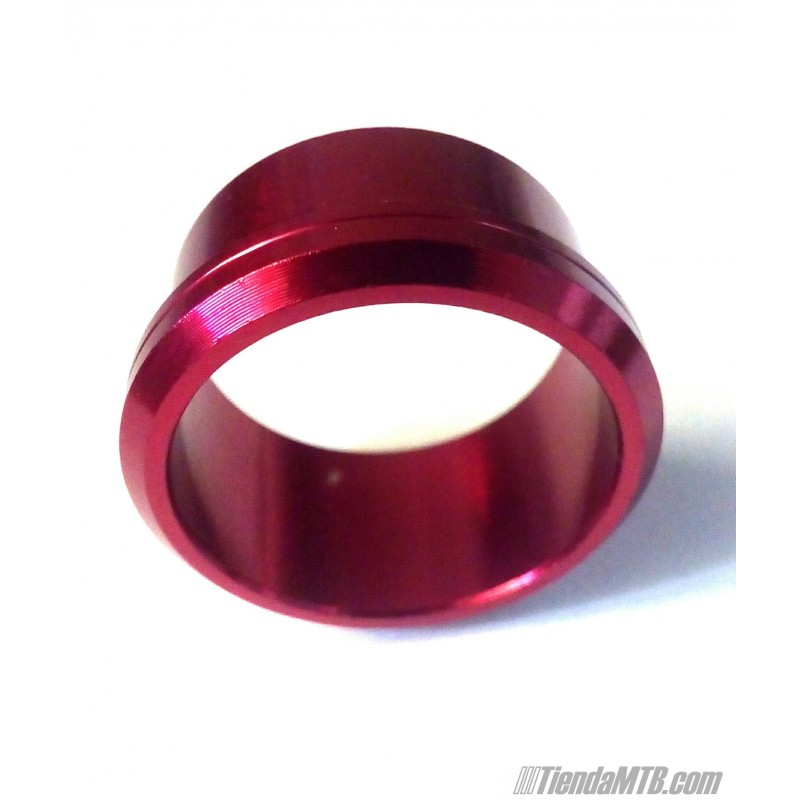

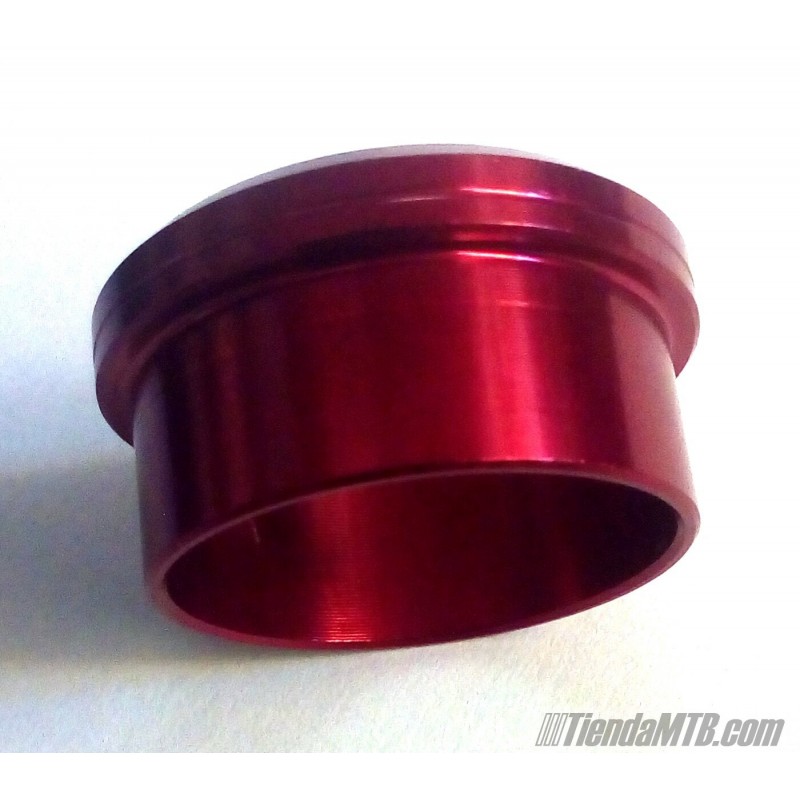

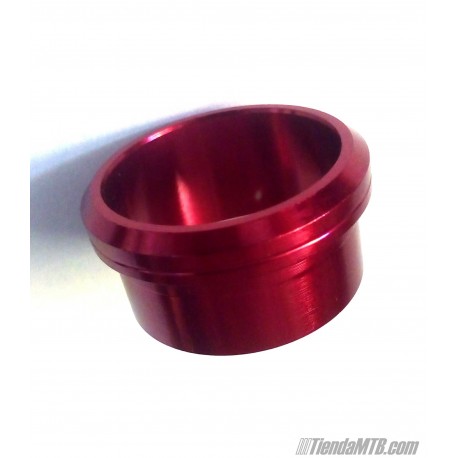

Bottom bracket adapter from Shimano to SRAM GXP (from 24mm to 22mm)

1450-0

W2284500124

This adapter is needed tu use SRAM GXP cranks in Shimano type bottom brackets. The Shimano axle has 24mm in both sides, but SRAM GXP cranks has 22mm in the left, and 24mm in the right. This adapter is needed only in the left side, and reduce from 24mm to 22mm. Is posible that you need spacers to adjust lateral movement (not included).

Details

Desconocido Compartir:

7,90 €

9,90 €   -21%

21% tax incl.

Shipping not included.

Shipping Today

  • We ship worldwide.
  • FREE shiping to Spain Mainland in orders above 100€.
  • Cheap shipping to some EU countries in orders above 100€.
  • Shipping with web tracking with the main couriers (UPS, DHL, SEUR,...)
  • Secure card payment through a payment gateway.

More info

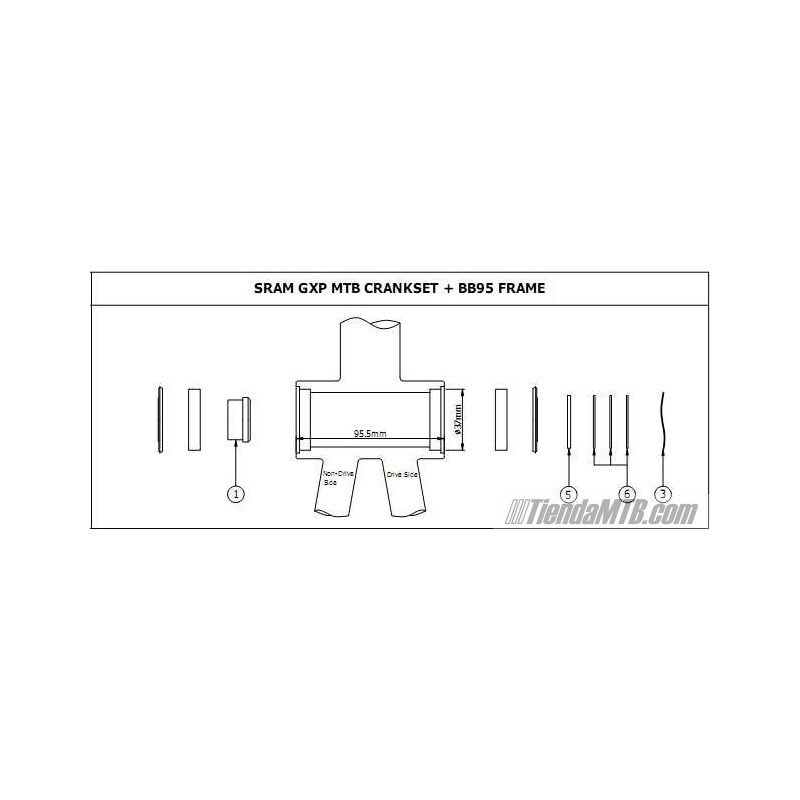

This adapter is needed tu use SRAM GXP cranks in Shimano type bottom brackets. The Shimano axle has 24mm in both sides, but SRAM GXP cranks has 22mm in the left, and 24mm in the right. This adapter is needed only in the left side, and reduce from 24mm to 22mm. Is posible that you need spacers to adjust lateral movement (not included), see attached pictures. The head of the adapter has 5mm length.

NOTE: Not compatible with some cups that have an inside edge that covers the entire bearing. You should be able to see about 2mm from the inner edge of the bearing for the adapter to enter and rest on the bearing and not on the edge of the cup (27.5mm of free diameter).
